RRM8894010-M1D
Description
RFHIC’s RRM8894010-MID is a 10W, X-band gallium nitride (GaN) transmit and receive Module designed ideally for next-generation active electronically scanned array radar systems. Operable at 8.8 to 9.4 GHz, (X-band) and is 50 Ohms fully matched for simple design integration. The RRM8894010-MID provides key features such as noise immunity and range extension for SPI Bus using LVDS interface. A 6BIT phase, attenuation control, and low noise figure resulted in a precise and accurate receive signal.
View Product Specification
AESA Radar
Specification
| Band | X-band |
|---|---|
| Min Freq.(MHz) | 8800MHz |
| Max Freq.(MHz) | 9400MHz |
| Saturation Power(W) | 10W |
| Min TX Output Power(W) | 10W |
| RX Noise Figure(dB) | 4dB |
| Power Gain(dB) | 35dB |
| TX Gain | 35dB |
| RX Gain(dB) | 31dB |
| VDC(V) | 28 |
Related Products

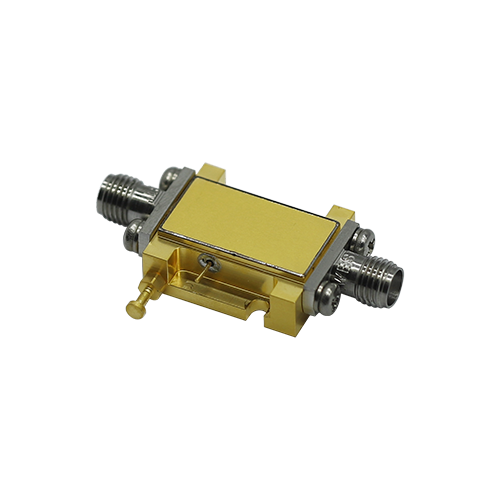

RRM1214-R1A ›
