RRM5459020-M1A
Description
RFHIC’s RRM5459020-M1A is a C-band gallium nitride transmitter/receiver (GaN T/R) module designed for radar systems applications. Operating from 5.4 to 5.9 GHz, the RRM5459020-M1A achieves 20 W of output power with a TX gain of 40 dB. The RRM5459020-M1A has a built-in circulator that provides duplex functions and a built-in limiter diode to protect the receiver. The RRM5459020-M1A achieves a duty cycle of 10% and a pulse width of 50 us. Serial data, control the attenuator and 6-BIT phase shifter and bias sequencing is required.=The RRM5459020-M1A is fabricated on our cutting-edge gallium nitride (GaN) on silicon carbide (SiC) technology, resulting in higher power density, efficiency, wider bandwidth, and efficient thermal management.
View Product Specification
Weather Radar
Air Traffic Control Radar
Surveillance Ground Radar
Meteorological Radar
Early Detection Radar
Specification
| Band | C-band |
|---|---|
| Min Freq.(MHz) | 5400MHz |
| Max Freq.(MHz) | 5900MHz |
| Saturation Power(W) | 20W |
| Min TX Output Power(W) | 20W |
| RX Noise Figure(dB) | 3.2dB |
| RX Gain(dB) | 26dB |
| Efficiency | 32% |
| VDC(V) | 30 |
Related Products
RFM0458-4TRM-020 ›
RFHIC’s RFM0458-4TRM-020 is a 12~25W, L/S/C-band, 4-Channel Module Amplifier designed for radar and communication. Due to its 4-Channel design, the ope...

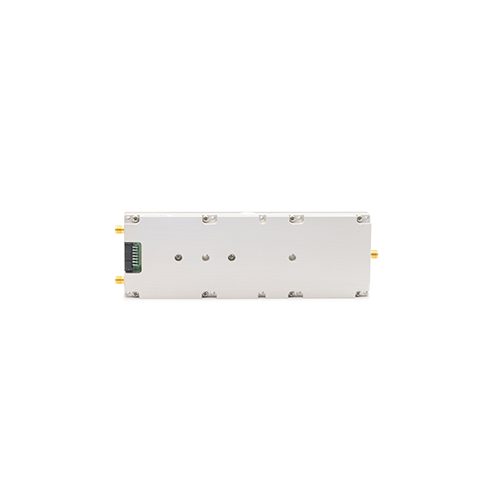

RFMR29-SFEM-200-400A ›
