RRT293110K-650PB
Description

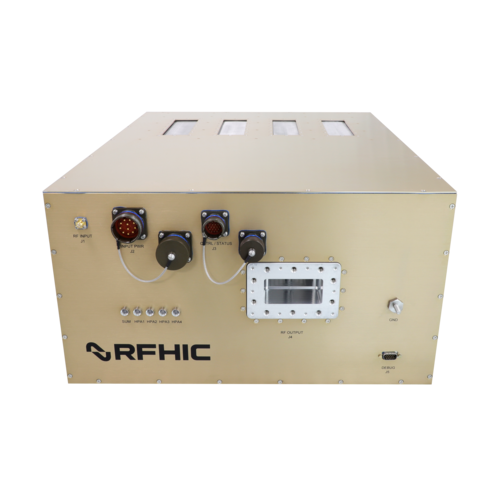

RFHIC’s RRT293110K-650PB is a 10kW, S-band, GaN solid-state transmitter designed for high-power radar applications. The RRT293110K-650PB is designed with RFHIC’s state-of-the-art gallium-nitride on silicon carbide (GaN-on-SiC) HEMT, providing excellent thermal stability and high voltage breakdown. This solid-state transmitter allows upgrading the existing VED (Vaccum Electronic Device, such as Klystron, Magnetron, Travelling Wave Tube, and Cross Field Amplifier) based transmitter for radar applications.
View Product Specification
Weather Radar
Air Traffic Control Radar
Missile Tracking Radar
Surveillance Ground Radar
Meteorological Radar
Specification
| Band | S-band |
|---|---|
| Min Freq.(MHz) | 2700MHz |
| Max Freq.(MHz) | 3100MHz |
| Type | Rack |
| Min Output Power | 10000W |
| Operating Mode | Pulse |
| Power Gain(dB) | 65dB |
| Efficiency | 20% |
| VDC(V) | 50 |
| VAC(V) | 50VDC |
| Cooling | Air |
| Dimension(mm) | 482.6(W) x 600(D) x 265(H) |
