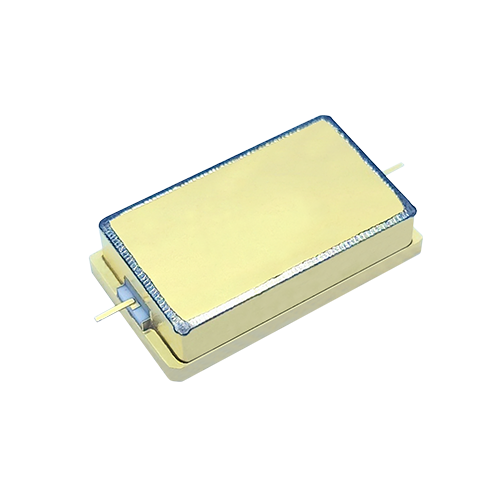

D001CCNH

Transistors - RF Energy
Sample Available for purchase
Contact
Sales Download Datasheet

Description

The D001CCNH is a integrated GaN power amplifier designed for applications in X-Band military and commercial Radar Systems covered 9200~10000 MHz. The D001CCNH uses GaN HEMT technology which provides high breakdown voltage, wide bandwidth, and high efficiency.

View Product Specification

Datasheet
Weather Radar System
Marine Radar System

Specification

Min Freq.(MHz) 9200MHz
Max Freq.(MHz) 10000MHz
Output Power(W) 70W
Power Gain(dB) 7.8dB
Drain Efficiency(%) 40%
VDC(V) 40
Package Type Flange
