RWP0427100-53

Wideband Amplifiers
Sample Available for purchase
Contact
Sales Download Datasheet

Description

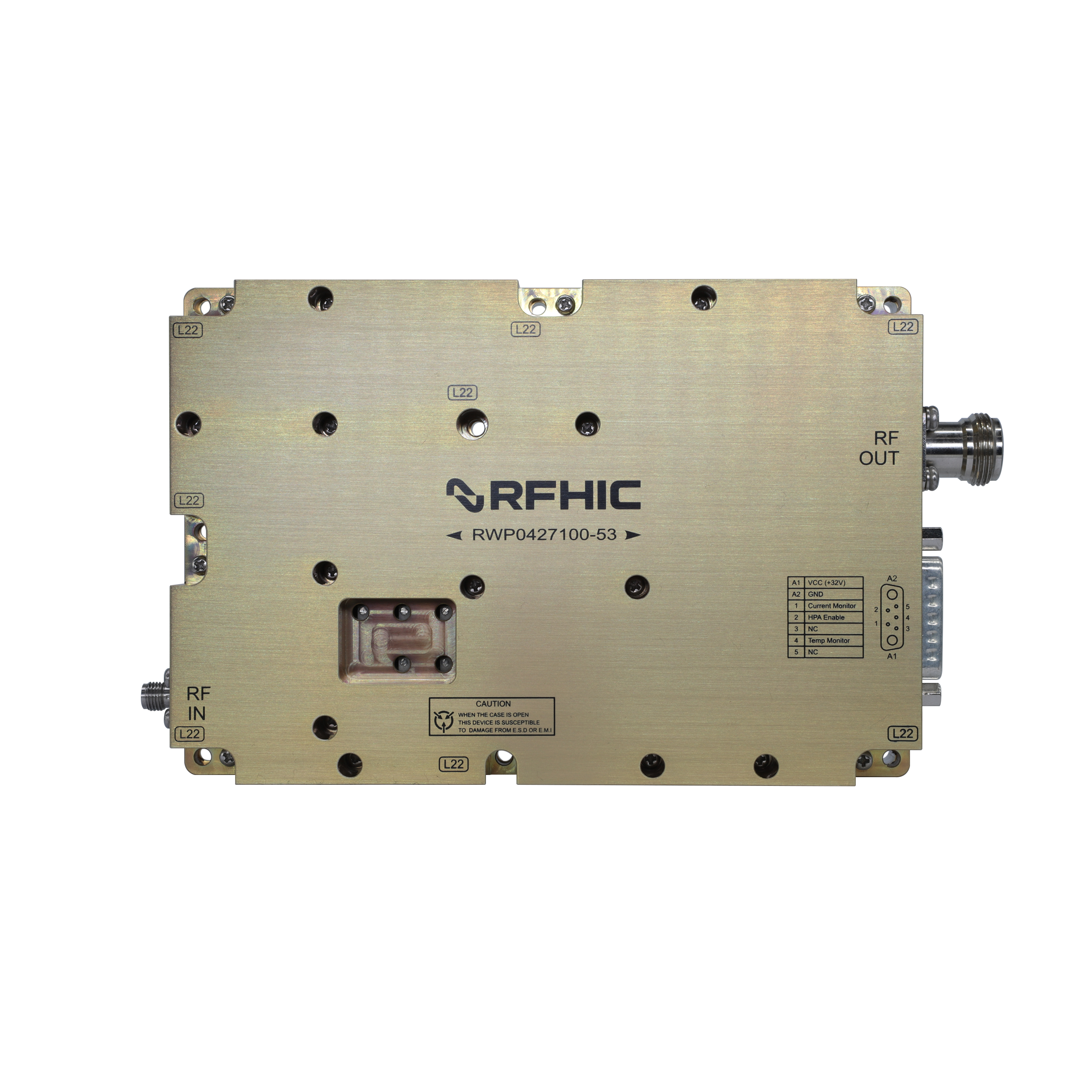

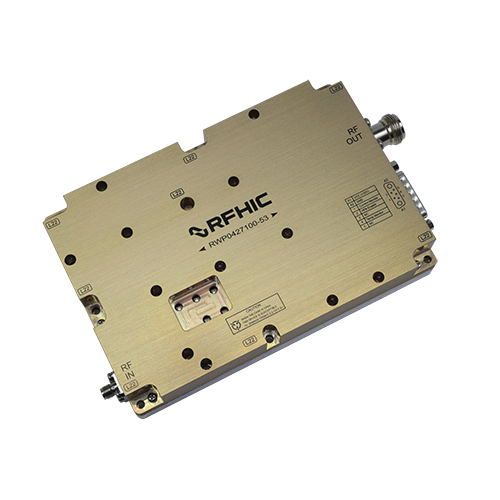

The power amplifier module is designed for Broadcasting, Telecommunication, Medical and Other markets. Operating frequency range is from 400 ~ 2700MHz. Gallium Nitride on SiC technology is used and attached on an aluminum sub carrier. Full in/out matching for broadband performance is already applied. Improved thermal handling by patented technology.

View Product Specification

Datasheet
Aerospace & Defense
Jamming Systems
Electronic Warfare
Rader
SATCOM
Telecommunication
GaN on SiC Broadband Amplifier
Electronic Warfare RF Amplifier
Wideband GaN Power Amplifier

Specification

Min Freq.(MHz) 400MHz
Max Freq.(MHz) 2700MHz
Typ Output Power(W) 80W
Power Gain(dB) 49dB
Efficiency 30%
Dimension(mm) 156(L) x 105(W) x 30(H)
Weight 0.74kg
