RRM1213-22R1A-15P

Low Noise Amplifiers
Production
Contact
Sales Download Datasheet

Description

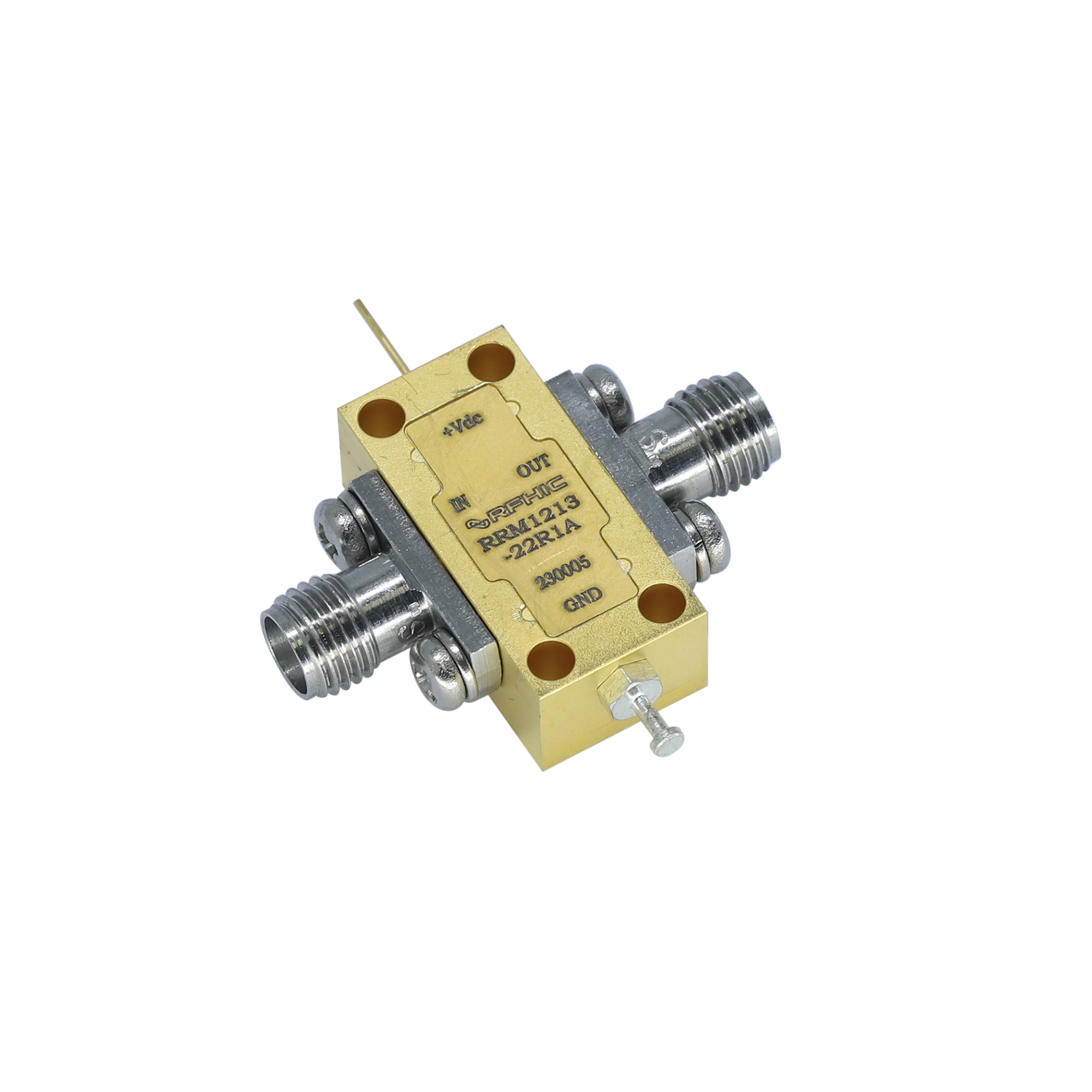

RFHIC’s RRM1213-22R1A-15P is an LNA fabricated on RFHIC’s GaAs p-high-electron-mobility (HEMT) process. Covering 1200 to 1300 MHz, the RRM1213-22R1A-15P provides 21dB of gain and P1dB of 15dBm, while supporting a noise figure of 0.8dB. Operating voltages from 14.5V to 15.5V.
The RRM1213-22R1A-15P’s high performance and handling ease make it ideal for L-band radars and communication systems.

View Product Specification

Datasheet

L-band Radars
Communication Systems

Specification

Min Freq.1200MHz
Max Freq.1300MHz
Typ Output P1dB15dBm
Noise Figure0.8dB
Power Gain21dB
VDC15.5
