RIK138K0-40T

Transmitter Systems
Sample Available for purchase
Contact
Sales Download Datasheet

Description

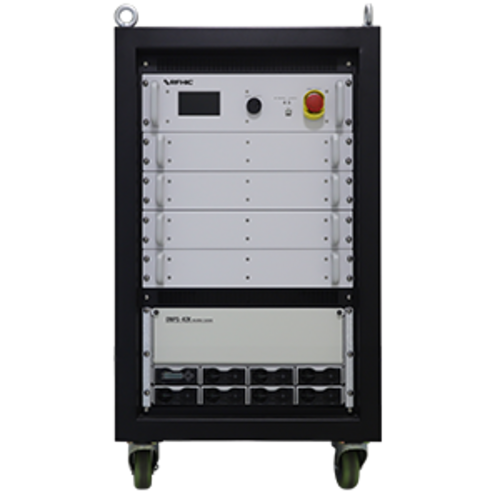

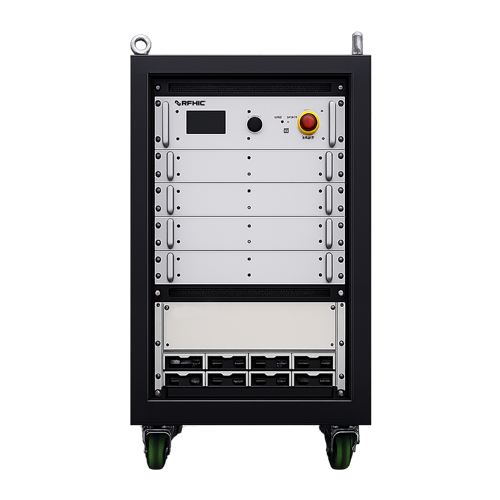

The RIK138K0-40T is a high-power microwave generator (SSPA) utilizing cutting-edge GaN on SiC HEMT technology, delivering high breakdown voltage and exceptional power efficiency. This product is engineered to meet the stringent and precise requirements of modern particle accelerators and synchrotron light sources.

View Product Specification

Datasheet
Linear Accelerators
Microwave Assisted X-Ray Laser
Synchrotron Light Sources
Particle Acclerators
High-Power RF Systems

Specification

Min Freq.(MHz) 1299MHz
Max Freq.(MHz) 1301MHz
Output Power(W) 8000W
Power Gain(dB) 59dB
Efficiency 58%
VDC(V) 50
VAC(V) 380 VAC
VSWR 6:1
Cooling Water/Air
Line Connection 3 Phase 4 Wire
Dimension(mm) 600(W) ⅹ 1100(D) ⅹ 978(H)
Weight 200kg
