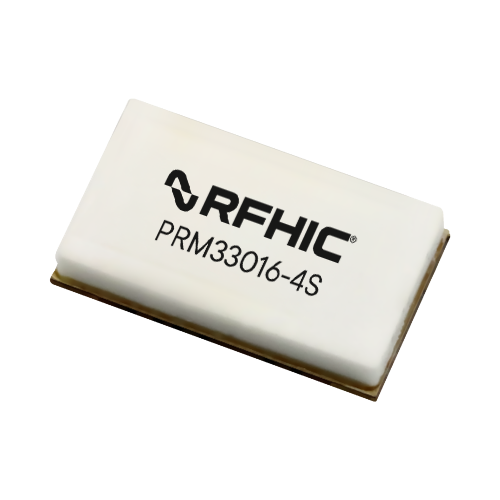

PRM33016-4S
Description
RFHIC’s PRM33016-4S is a 16W, S-band, GaN hybrid power amplifier module designed for military and commercial radar applications. The PRM33016-4S is designed with RFHIC’s state of the art gallium-nitride (GaN) on SiC HEMT, providing excellent thermal stability and high breakdown voltage.
View Product Specification
Military Radar
Commercial Radar
Specification
| Band | S-band |
|---|---|
| Min Freq.(MHz) | 3100MHz |
| Max Freq.(MHz) | 3500MHz |
| Type | PP-3G |
| Min Output Power | 16W |
| Typ Output Power(W) | 17W |
| Power Gain(dB) | 28dB |
| PAE(%) | 64% |
| VDC(V) | 24 |
